TROJAN BETA400 purpose of cutting in metallography

  • TROJAN BETA400 purpose of cutting in metallography
  • TROJAN BETA400 purpose of cutting in metallography
  • TROJAN BETA400 purpose of cutting in metallography
  • TROJAN BETA400 purpose of cutting in metallography

TROJAN BETA400 purpose of cutting in metallography

    Min. Order: 1 Piece/Pieces
    Packaging: Standard Export Package, Wooden Case
    Productivity: 5000Set/per Year
    Brand: TROJAN
    Transportation: Ocean
    Place of Origin: China
    Supply Ability: 5000Set/per Year
    Certificate: CE
    Port: Shanghai

Basic Info

Model No.: BETA400

Product Description

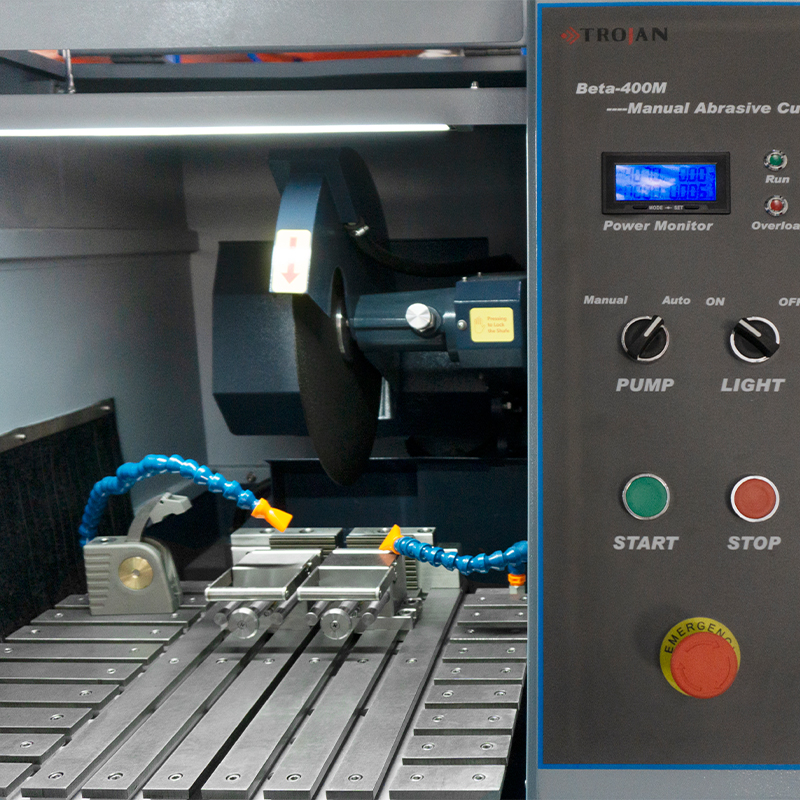

Beta-400MA is a large automatic cutting machine, suitable for cutting all kinds of metal materials, ceramics, quartz glass and petrographic samples. The equipment is equipped with a variety of fixtures, can cut the irregular shape of the workpiece, and realize the table automatic/manual feed cutting (Y direction), automatic cutting slice cutting (Z direction, flexible automatic cutting mode, improve the use of efficiency. Pulse cutting and larger circulating water tank greatly avoid the sample burn. Heavy Cutting Machine and Metallographic Cutting Machine and Metallographic Mounting Machines and Metallographic Cutting Piece and Cutting Consumables.
Product features
(1) Cast aluminum base, 304 stainless steel body, strong corrosion resistance, durable;

(2) Using rocker to control Y and Z axis knife alignment, faster and more convenient;
(3) Large working surface and operating space;
(4) Manually move X to the platform to achieve one clamping and multiple cutting;
(5) One-button washing function, quickly remove the water mist on the window, and wash the debris in the cutting room;
(6) air extraction and air purification device, quickly remove the water vapor in the cutting room and clean the odor generated when cutting;
(7) Floor independent water tank, large volume, convenient cleaning, continuous operation;
(8) Laser knife function, fast fixed sample clamping, accurate positioning;
(9) Pulse cutting, automatic speed adjustment, better cutting effect;
(10) Automatic judgment of cutting end function;
(11) Fast positioning function.

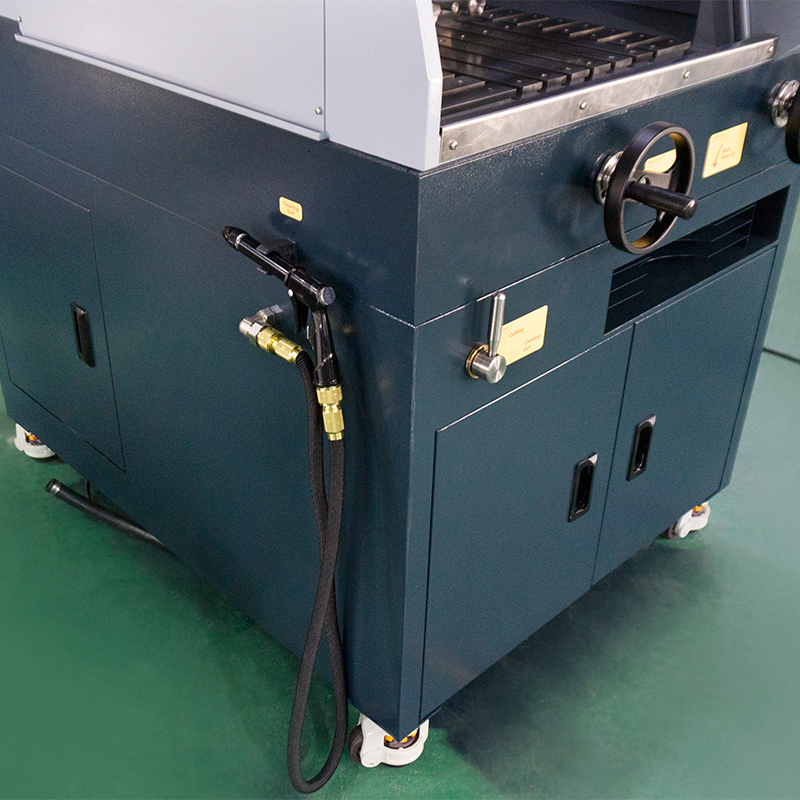

The Beta-400MA is equipped with a movable circulating cooling water tank with casters. Capacity of 100 l. And it is equipped with 20 mesh filters.


The RPM speed
2000
Mm in diameter
400
The center hole mm
32
The input
3x380V/50Hz+ neutral wire + ground wire
Rated power
7.5 KW
Emergency stop
Press to cut off the control loop and main power supply
Rapid brake
Cut finished, quick stop
Security door lock
When the door is open, it cannot start. During operation, the door is locked and cannot be opened
rocker
Hands control is required to prevent accidental contact
Overload protection
Automatic stop over load current
The cut by mistakeV
Limit switch + set maximum stroke + set minimum position to prevent the work table from being miscut or over range
Display/control
7-inch touch screen
The Z axis feed
Automatic feed/rocker control; 0.01 ~ 5 mm/s
The Y axis feed
Manual automatic feed/hand wheel, rocker control: 0.01~5mm/s
The X axis feed
Hand wheel manual control
Water tank capacity
100L
Tank size
1000x450x500mm(WxDxH, with water pump)
interface
Water inlet: 4 fen, ¢19 inner diameter high pressure pipe; Effluent: 1.5 inches, ¢38 bore hose
waterway
6 channels, flow rate: 100L/ min
Cutting pattern
Manual mode/Y mode/Z mode
Speed way
Constant speed cutting/pulse cutting/automatic speed regulation
Maximum diameter mm
Ø 150
Maximum square section
120x350(at least two cuts)
The size of the mm
438x388
T slot
12mm
Stroke mm
Z: 210, Y: 270, X: 220
The host
550kg
The water tank
40Kg


abrasive cutting machineabrasive cutting equipmentautomatic cut off machine
